Applicable materials:
Free to visit the factory, the whole teaching style to assist the factory

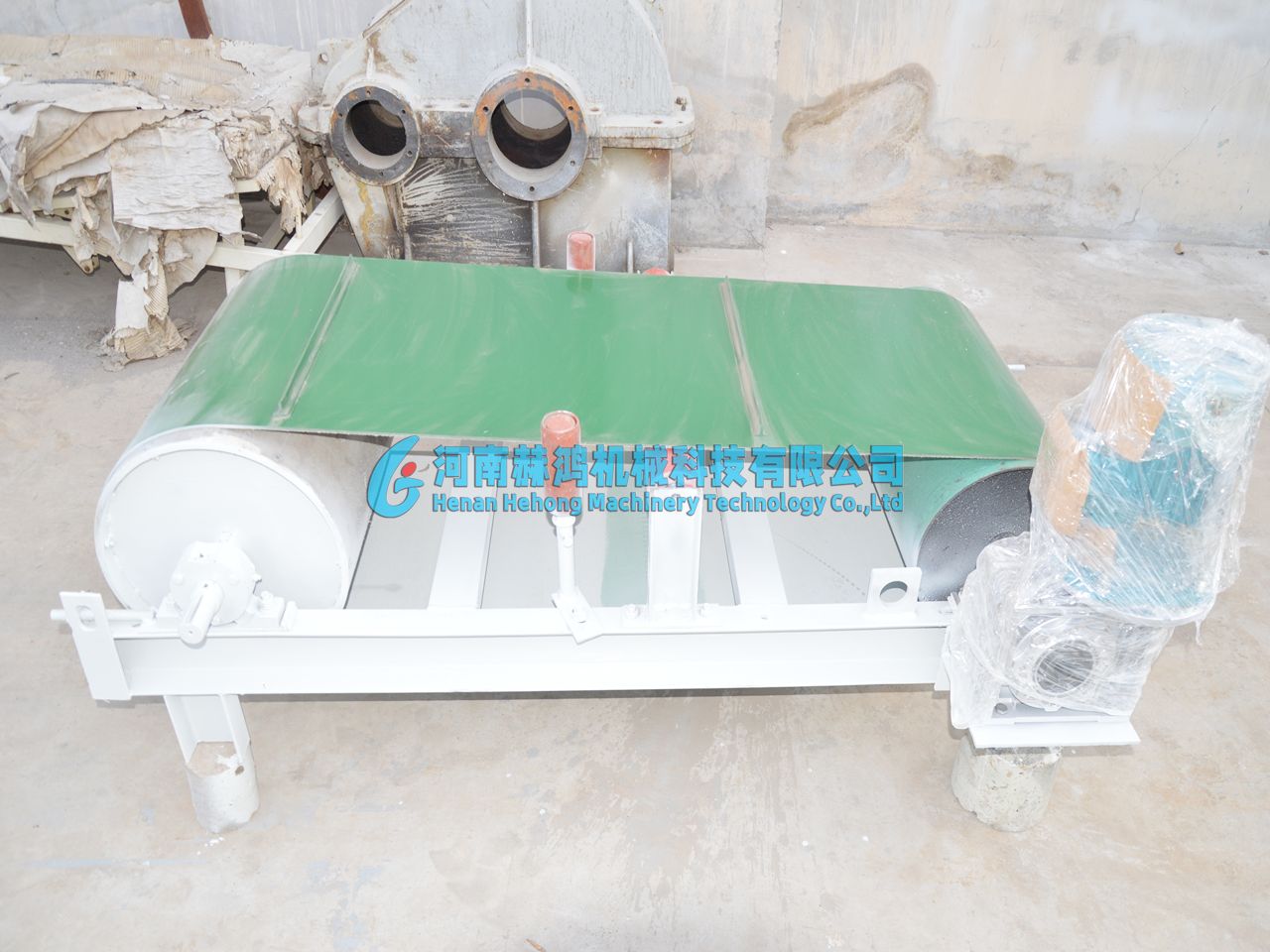

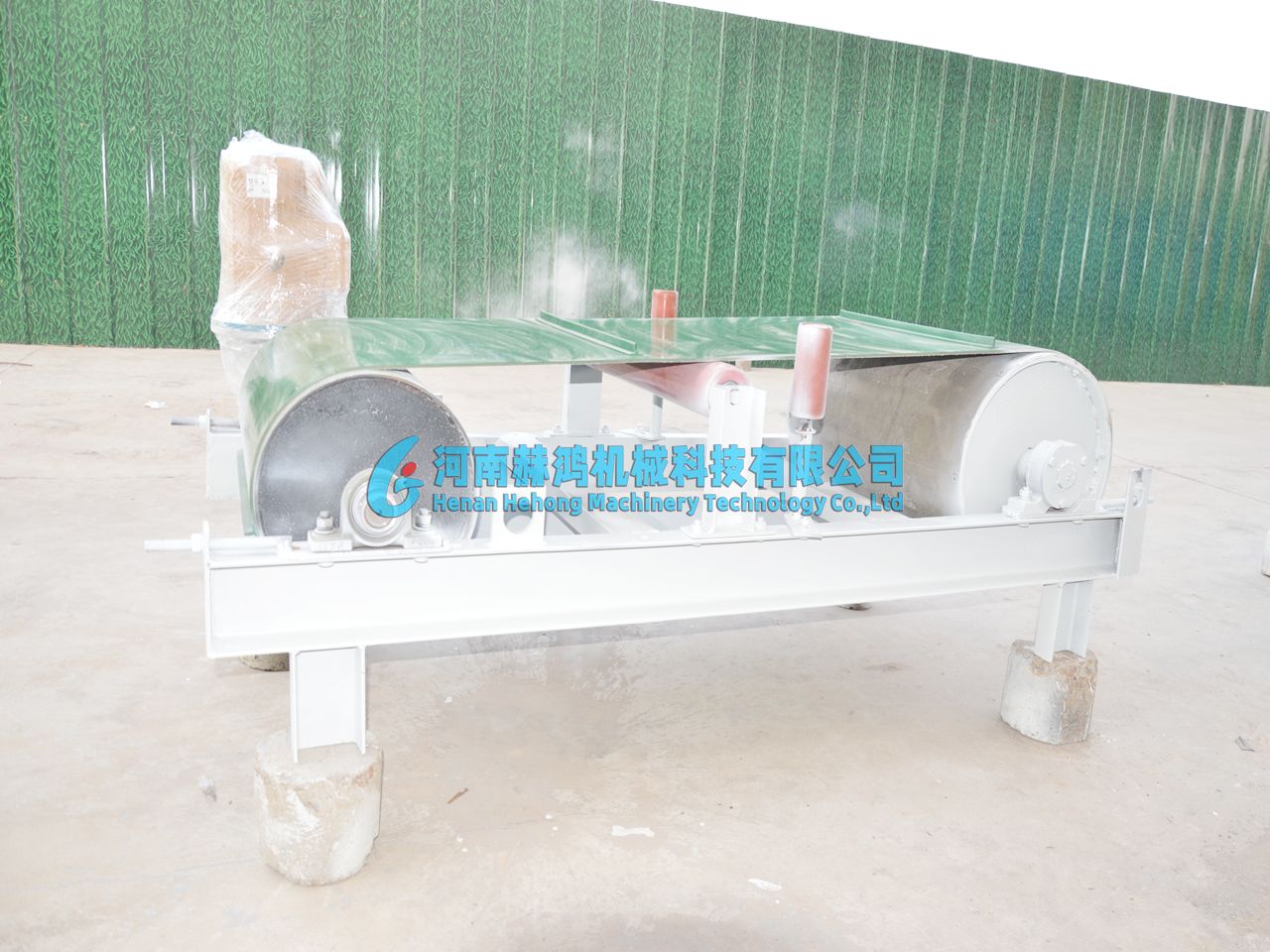

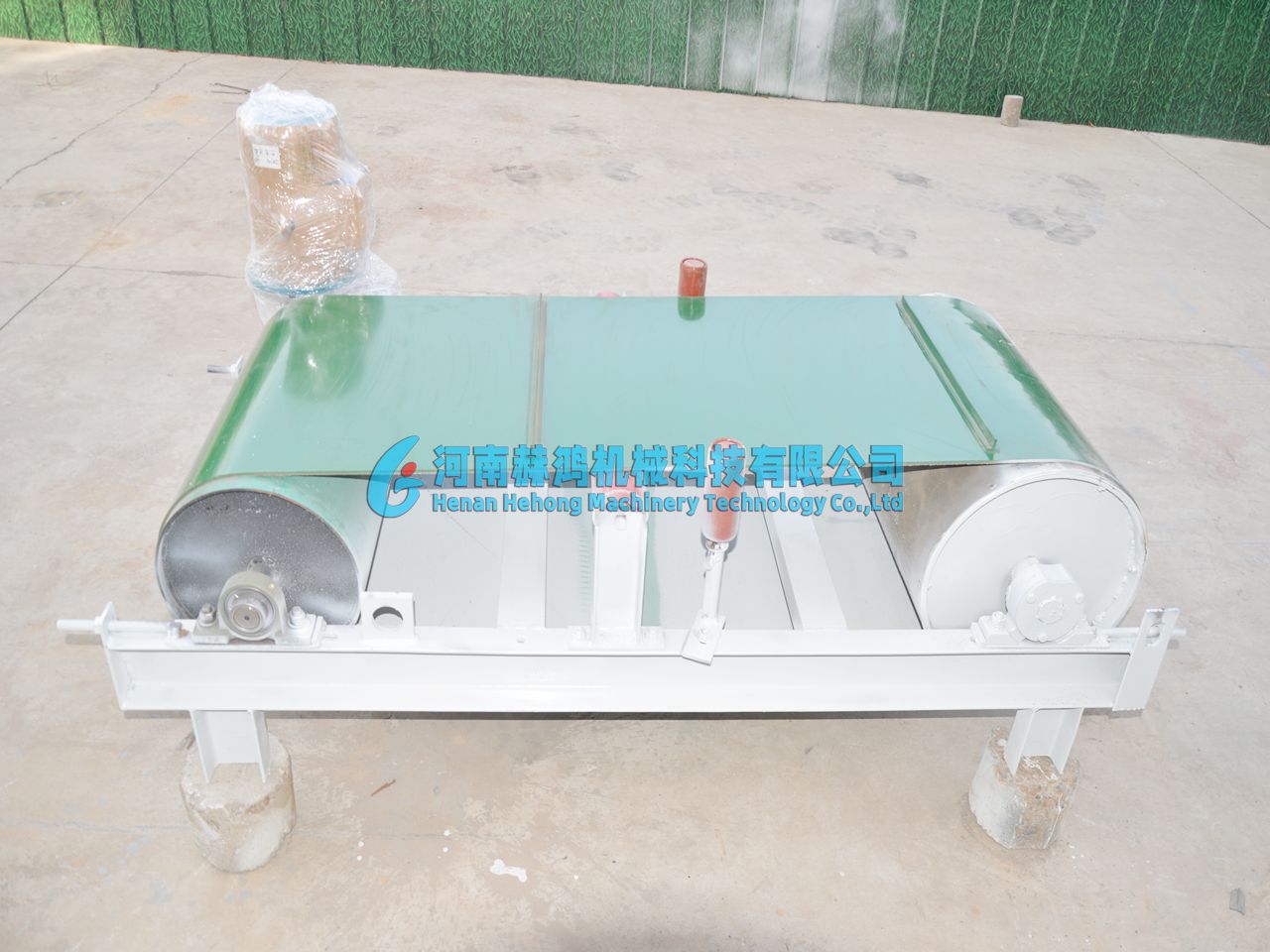

RCYY series overband magnet is used to install above the belt conveyor to extract iron particles and iron scraps which are smaller than 5 cm.It is driven by a motor and a turbine reducer to drive the active roller, thereby driving the belt to run.Its passive roller is a magnetic drum, which provides magnetic force.Its magnetic field can be customed between 1500 to 8000 Gauss.
| Mode | Adapt to bandwidth(mm) | Rated lifting height (mm) | Material thickness ≤ mm | magnetic field intensity ≥MT | Motor (kw) | Adapt to belt speed ≤m/s | |
| RCYY-500 | 500 | 40 | 35 | 60 | 1.5 | 4.5 | |
| RCYY-600 | 600 | 50 | 45 | 60 | 1.5 | ||
| RCYY-650 | 650 | 60 | 55 | 70 | 2.2 | ||
| RCYY-800 | 800 | 70 | 65 | 70 | 2.2 | ||
| RCYY-1000 | 1000 | 80 | 75 | 70 | 3 | ||
| RCYY-1200 | 1200 | 90 | 85 | 70 | 4 | ||
| RCYY-1400 | 1400 | 100 | 95 | 70 | 4 |
RCYY series Overband magnets
